Selecting the appropriate insulation material is crucial for the performance and longevity of small electric motors. For manufacturers and engineers, Sui On Insulating provides solutions tailored to high-demand electrical applications. Among these, Mylar® polyester film is often considered for its consistent thickness and reliable electrical properties, particularly in tight motor slots where space constraints are critical. Understanding whether 2 mil Mylar® is sufficient requires examining both material characteristics and application requirements.

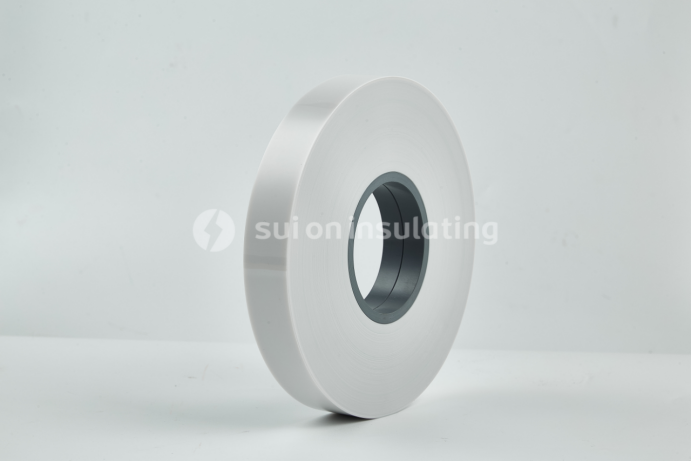

Material Properties of Mylar Polyester Film
Mylar polyester film offers stable dielectric strength and excellent mechanical properties, making it suitable for insulation in compact motor windings. Its low shrinkage and high dimensional stability within Class B (130°C) thermal ratings, ensuring consistent performance in applications with moderate thermal loads. Sui On Insulating combines decades of experience in insulation manufacturing with advanced production equipment, ensuring that their 2 mil Mylar® products meet stringent standards while accommodating small slot dimensions.
Application Considerations for Small Motor Slots
When working with small motor slots, the gauge of insulation affects both winding density and thermal management. Using 2 mil Mylar® provides a balance between flexibility and protective coverage, reducing the risk of electrical shorts without excessively increasing slot space requirements. They also offer a range of complementary products and custom solutions to adjust thickness or lamination for specific applications. Engineers in sectors like automotive, energy, and data centers can rely on these materials for both new designs and retrofits.
Conclusion: Assessing Suitability and Performance
In conclusion, 2 mil Mylar® from Sui On Insulating is often an optimal choice for low-voltage miniature motors, where space is at a premium and mechanical abrasion during winding is carefully controlled. By selecting the appropriate gauge, manufacturers can optimize winding compactness and maintain insulation integrity. Their extensive testing and adherence to quality standards support consistent performance across various industrial applications. Choosing the right insulation material involves understanding both physical properties and operational demands, and Sui On Insulating provides a practical option for engineers seeking a balance of performance and adaptability.
